CT4536 Series

Probe Lead Sets with 2 mm Tip Configurations

Product Overview

Introducing the CT4536 Series Probe Leads from Cal Test Electronics — available to support a wide range of probing needs. Choose between a 2 mm tip to right-angle banana plug configuration for handheld meter use, or a 2 mm tip to straight banana plug configuration for test setups where an inline connection is preferred. A convenient probe lead set with alligator clips is also available for applications that require secure hands-free connections.

Each probe body features a brass, nickel-plated tip for reliable, consistent contact. A removable safety cap ensures proper protection during standard probing tasks and exposes the tip when direct connection or fine probing is required.

Designed in accordance with IEC 61010-031, these probes provide 1,500 VDC CAT III / 1,000 V CAT IV protection with the safety cap installed, making them suitable for industrial, field service, and laboratory environments.

The series is offered in the following 120 cm black/red pair configurations:

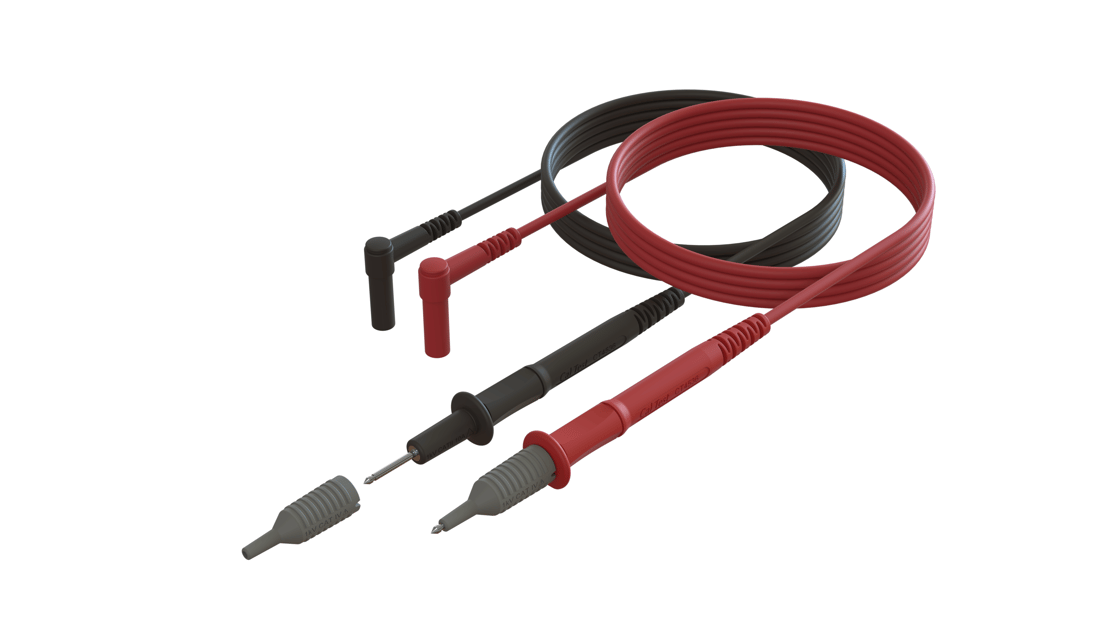

CT4536-01-120-0_2 – 2 mm Tip to Right-angle Banana Plug
CT4536-02-120-0_2 – 2 mm Tip to Straight Banana Plug

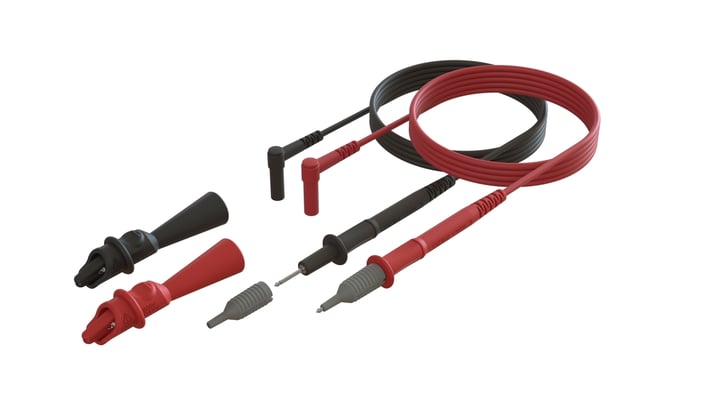

CT4643-120 – Probe lead set with 2 mm tip to right-angle banana plug and alligator clips

Backed by a one-year warranty and compliant with RoHS 2 and REACH standards.

Features:

• Removable safety cap provides effortless IEC-rated protection

• Brass, nickel-plated tips ensure long-lasting, reliable contact

• Compact body design for maneuverability in dense test environments

• Compatible with 4 mm jacks

Specifications:

• Rated Voltage: 1,500 VDC CAT III / 1,000 V CAT IV (1000 V CAT II with tip cover removed.)

• Rated Current: 10 A

• Materials: Polypropylene insulator and tip cover; nickel-plated brass tips.

• RoHS 2 and REACH Compliant

• For full specifications, see the product drawing.
