CT4540-#

Now Available: 1,000 V CAT IV Magnetic Adapter

Product Overview

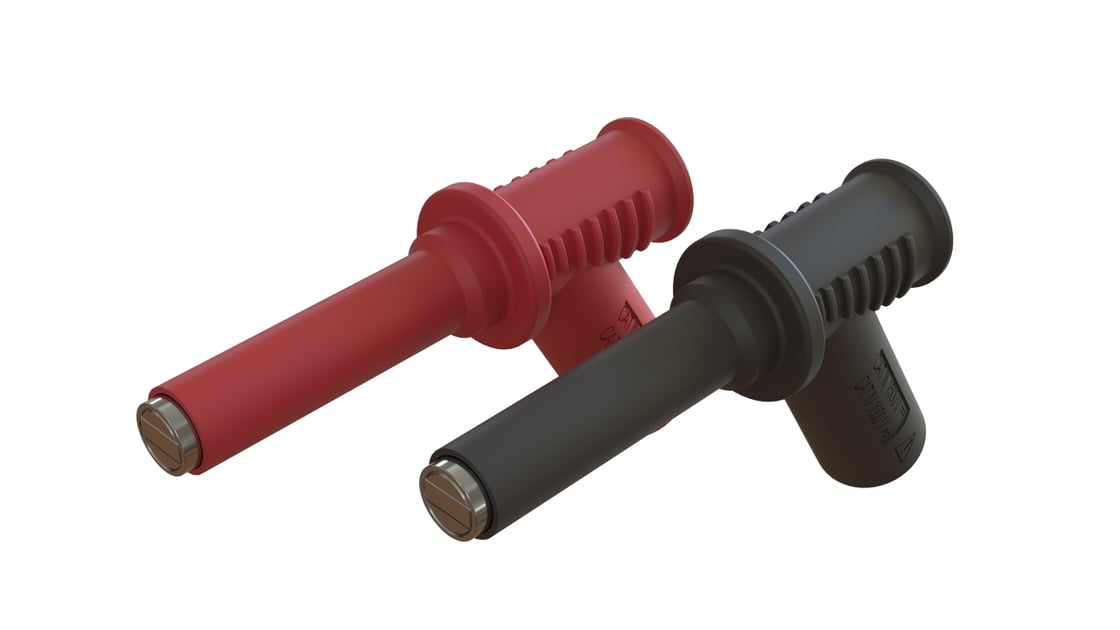

Introducing the CT4540-0 (Black) and CT4540-2 (Red) Magnetic Adapters from Cal Test Electronics — engineered to deliver a secure and dependable connection to terminal block screw heads or any metal contact points. Designed in accordance with IEC 61010-031, these probes carry a 1,500 V CAT III / 1,000V CAT IV rating and support up to 2 A, making them ideal for field service, and laboratory use. Each connector features a high-strength N35 rare-earth magnet for hands-free operation. The angled connector, coupled with a 4 mm sheathed banana jack create seamless and effortless compatibility.

Also available as a convenient black/red pair: P/N CT4540-0_2.

Backed by a one-year warranty and compliant with RoHS 2+ and REACH standards.

Features:

• 1,500 VDC CAT III / 1,000 V CAT IV / 2 A rated

• 6 mm Magnet contact tip

• Accepts 4 mm sheathed banana plugs

• Available in black (CT4540-0) and red (CT4540-2)

Specifications:

• Voltage Rating: 1,500 VDC CAT III / 1,000 V CAT IV

• Current Rating: 2 A

• Body: Polypropylene

• Jack: Brass, Nickel Plated

• Magnet: N35 , 6 mm OD

• Standard Colors: Black (CT4540-0), Red (CT4540-2); others available by special order

• Operating Temperature Range: -20°C to +60°C

• RoHS 2+ and REACH Compliant
