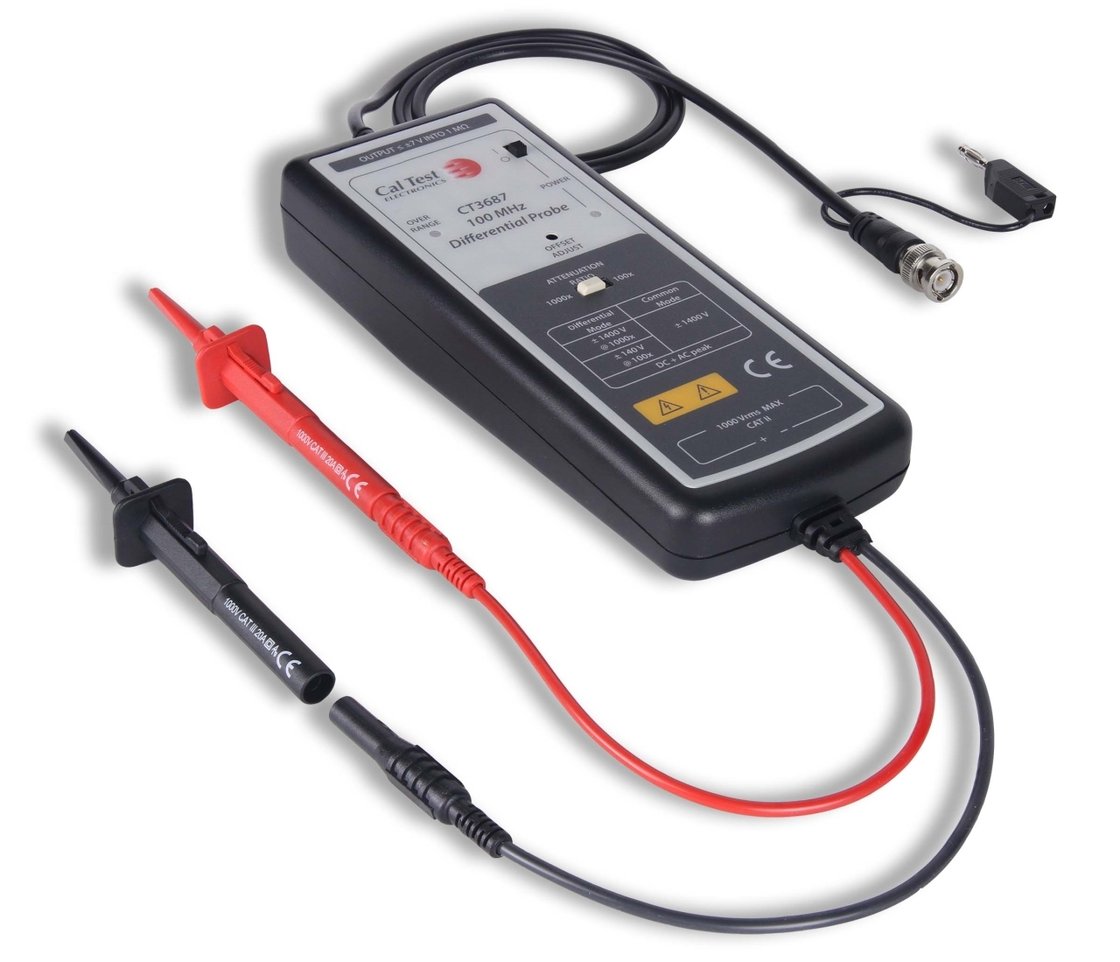

Cal Test Electronics reintroduces the CT3687 100 MHz High-Voltage Differential Probe — brought back by popular demand. Known for its proven performance and robust design, the CT3687 is once again available to support engineers needing safe, accurate differential measurements up to ±1,400 V.
Differential probes allow an earth-grounded oscilloscope to safely measure voltage between two floating points, where neither is at ground potential. The CT3687 converts those signals into ground-referenced outputs that can be safely displayed on any oscilloscope with 1 MΩ input impedance. With switchable attenuation (100x / 1000x), a wide 100 MHz bandwidth, and ±1% accuracy, the CT3687 enables high-resolution measurements in power electronics, motor drives, and energy systems. At 100x attenuation, the probe supports ±140 V, and at 1000x, it supports ±1,400 V differential and common-mode input voltages.
The CT3687 includes four AA batteries for immediate operation and also supports the CT3723 universal power adapter and the CT4122 USB power lead (both optional), offering flexibility in field and bench environments.
Backed by a one-year warranty and compliant with IEC 61010-031, RoHS 2, and REACH, the CT3687 is a rugged, ready-to-use solution trusted by engineers across a wide range of high-voltage applications.
Features:
±140 V (100x) and ±1,400 V (1000x) differential input
100 MHz bandwidth (-3 dB)
Switchable attenuation: 100x / 1000x
±1% accuracy with high CMRR (-80 dB @ 60 Hz)
Compatible with oscilloscopes (1 MΩ input)
Power and over-range indicators
Operates on AA batteries (included)
Optional power via CT3723 (adapter) or CT4122 (USB)
Includes hook probes and user manual
One-year warranty
RoHS 2 and REACH compliant
Specifications:
Bandwidth: 100 MHz (-3 dB), 3.5 ns rise time
Differential Input Voltage: ±140 V @ 100x, ±1,400 V @ 1000x
Attenuation Ratio: Switchable 100x / 1000x
Accuracy: ±1%
CMRR (typical): -80 dB @ 60 Hz, -50 dB @ 1 MHz
Power Options: 4 AA batteries (included), optional CT3723 adapter or CT4122 USB lead
