CT4538-#

Now Available: 1,000 V CAT IV Probe Body with 2 mm Stainless Steel Tip

Product Overview

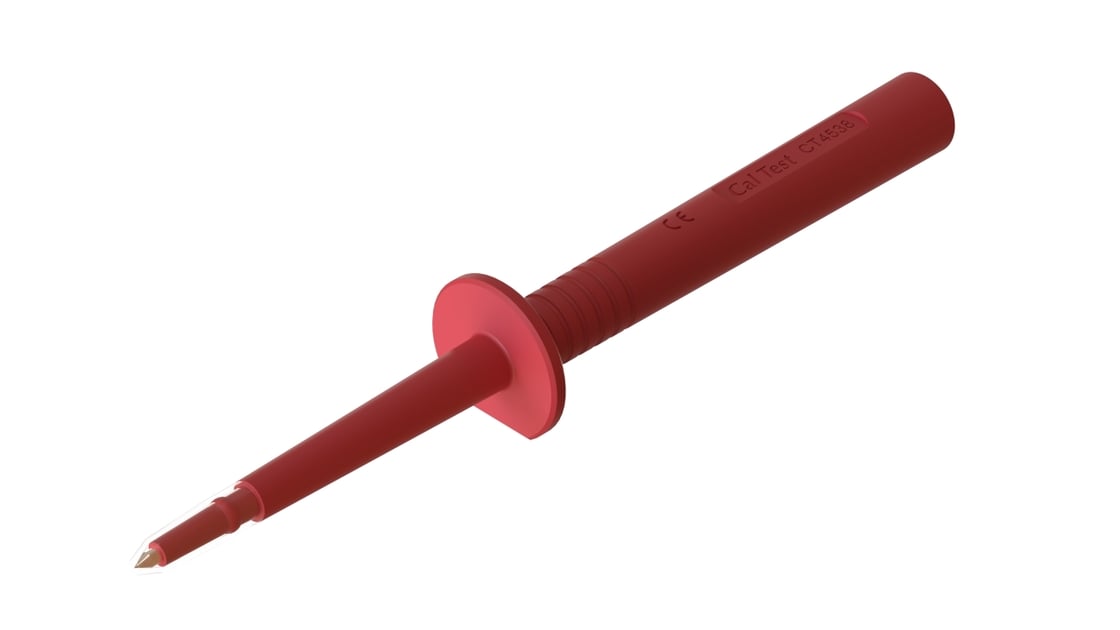

Introducing the CT4538-0 (Black) and CT4538-2 (Red) Extended Reach Fine-Tip Probes from Cal Test Electronics — engineered for high-voltage measurement environments requiring long reach, precision contact, and safety. Designed in accordance with IEC 61010-031, these probes carry a 1,000 V CAT IV rating and support up to 16 A, making them ideal for industrial, field service, and laboratory use. Each probe body features a sharp stainless steel tip designed to pierce oxides and maintain reliable contact on a variety of surfaces. The extended 138 mm (5.4”) body ensures access to hard-to-reach test points and a clear removable probe cap provides protection for transport or storage. The probe accepts any standard 4 mm sheathed banana plug test lead, ensuring wide compatibility.

Also available as a convenient black/red pair: P/N CT4550.

Backed by a one-year warranty and compliant with RoHS 2+ and REACH standards.

Features:

1,000 V CAT IV / 16 A rated
138 mm (5.4") long reach body
Stainless steel contact tip
Clear removable tip cap
Available in black (CT4538-0) and red (CT4538-2)

Specifications:

Voltage Rating: 1,500 VDC CAT III / 1,000 V CAT IV
Current Rating: 16 A
Probe Tip Material: Stainless Steel, Passivated
Insulator Material: Polypropylene
Cap Material: Clear Polypropylene
Body Length: 138 mm (5.4")
Standard Colors: Black (CT4538-0), Red (CT4538-2); others available by special order
Connector: Accepts 4 mm sheathed banana plugs
Operating Temperature Range: -20°C to +60°C
RoHS 2+ and REACH Compliant
